Technical data Pump Red Dragon ® 5 ECO 130 Watt 11.0 m³:
- 130 Watt/h 6.9 mtr. pressure height
- Adjustable Speed DC Brushless Pump
- Watt-, Power Consumption and Revolution per minute (RPM) - Display
- Adjustable in 2 watt steps from 2W to 130W
- intake side 40 mm (1.25") - pressure side 32 mm (1")
- Operating voltage: 100-240 Volt 50-60 Hz (24V Technology)
- Pump protection index: IP 68 Control unit: IP 66
- Pump weight without controller: 3.5 kg
- Height suction side: center 75 mm
- Pump dimension: 130 mm wide / 230 mm long / ~ 190 mm high
- Control box dimension: 50 mm wide / 100 mm long / ~ 190 mm high
Operation_and_maintenance_manual.pdf
- M5 grade 2 titanium screws resistant to salt water
- Saltwater resistant parabolic rubber feet for acoustic decoupling
- Very low noise brushless DC pump with external power electronics
- High efficiency technology, Sine Wave for very quiet operation
- Input and output complete with DIN connection, compact dimensions
- Easy to use and maintain, low risk of calcification
- Heavy and solid craftsmanship against vibrations and oscillations
- CE conformity, developed and built
- quality food from " Mean Well "
- high-quality touch screen with many additional functions
(protection against dry running, overheating, overvoltage, blocking, etc.) - 10V connection/control with 3.5mm TS connector (telephone jack)
- 3m cable between pump and controller
- 1.5m EU/US connection cable (rubber connector)

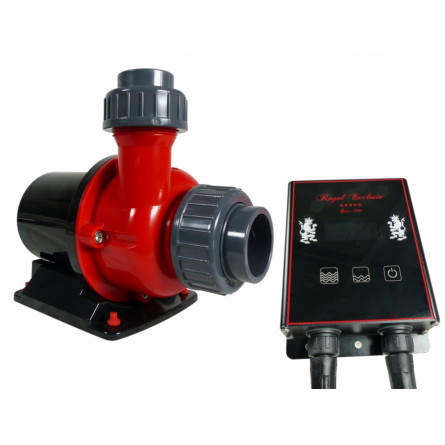

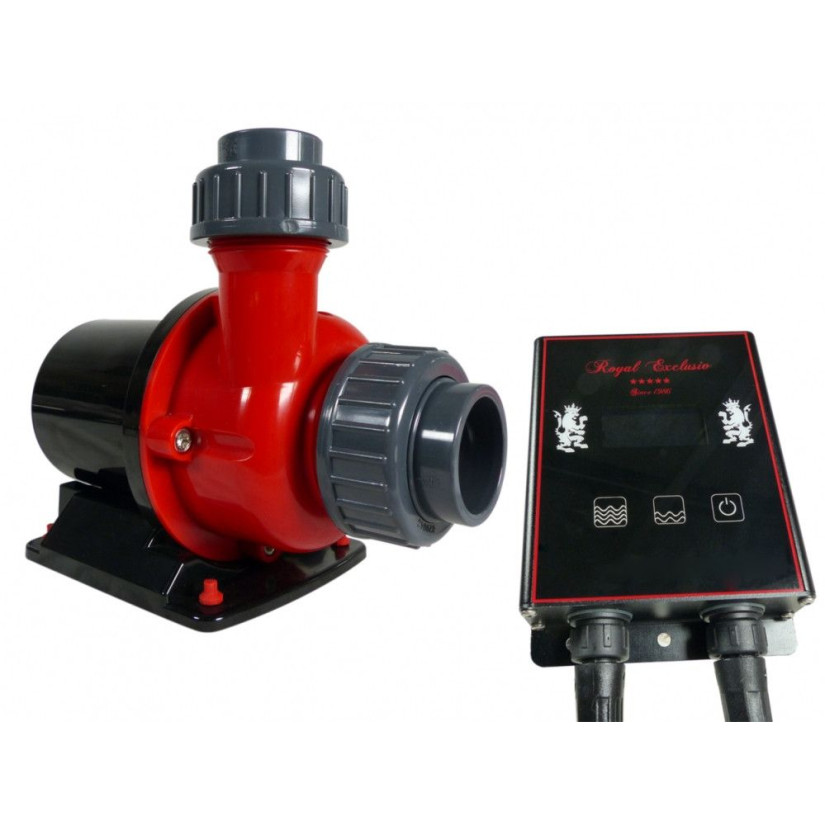

ROYAL EXCLUSIV - Red Dragon® 5 ECO 130 Watt / 11.0m³ - Water pump 11,000 l/h
The Red Dragon 5 ECO pump is a high-end water pump with a power of 11,000 l/h for a consumption of 130 watts .
