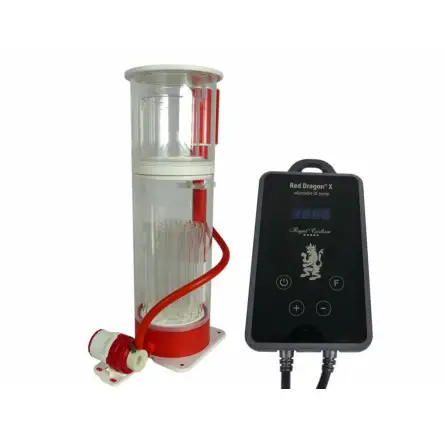

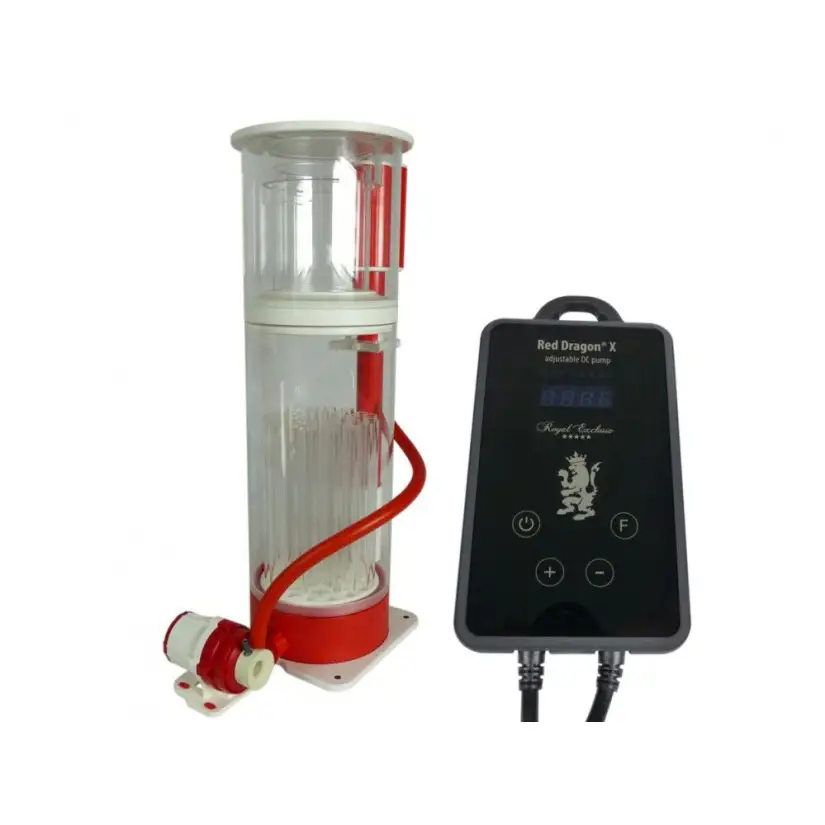

ROYAL EXCLUSIV - Supermarin 160 with Red Dragon X DC 24V

Main data Supermarin 160 with Red Dragon X DC 24V

1,500 l/h Air - 4,000 l/h Water = 1 Pump Red Dragon ^® X 5000 DC 24V Base: 18 cm x 18 cm / height ~ 58 cm Bubble King ^® VERSION Supermarin 160 RDX

Technical data Supermarin 160 with Red Dragon X DC 24V

• Skimmer-pump: Red Dragon ^® X 5000 Flow rate: 350-1,500 l/h
• Air inlet ~ 400-4,000 l/h
• Water input power: Pmax = 50 Watt/h
• Adjustable Speed Brushless DC Pump Revolution Per Minute (RPM)
• Display Adjustable in 16 steps from ~15W to 50W
• Operating voltage: 100-240 Volt 50-60 Hz (24V Technology)
• Pump protection class: IP 68
• Control unit: IP 66
• Pump weight without regulator: 0.6 kg
• Height suction side: center 60 mm
• Pump dimension: 110 mm wide / 190 mm long / ~ 150 mm high
• Control box dimension: 20 mm wide / 90 mm long / ~ 170 mm high
• Water level: ~ 130 mm up to ~ 300 mm
• Skimmer weight: 6 kg pump included
• Height inlet side: center 60 mm
• Skimmer dimension with pump: 200 mm wide / length 380 mm / height ~ 580 mm
