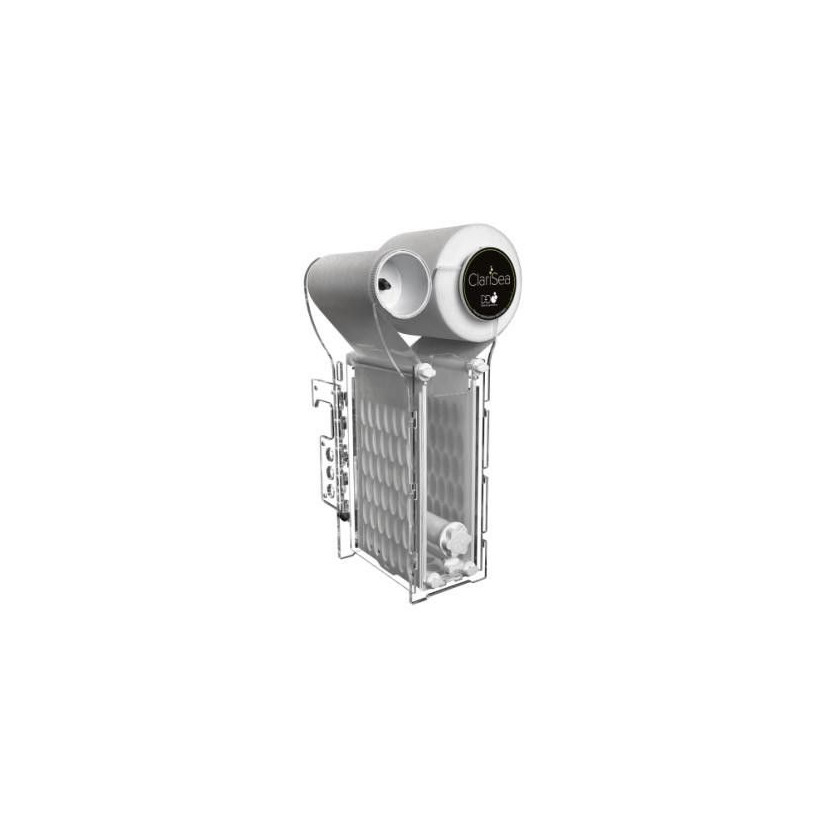

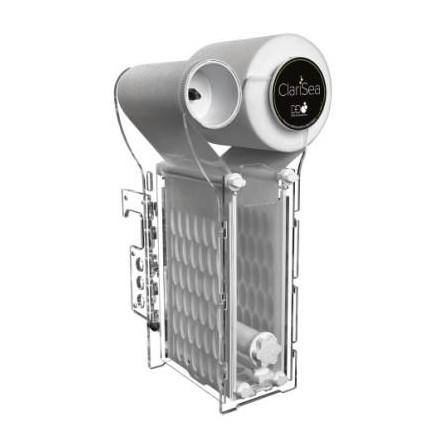

D-D - Clarisea SK-5000 GEN3 - Automatic filter - To remove suspended particles

Thanks to this filter suspended particles such as micro-algae, detritus, food, organic waste and gravel dust from the water column.
This filter is suitable for use in marine aquariums, freshwater aquariums, fish farming systems and coral propagation systems.

Features :

• High volume filtration capacity
• Minimum installation footprint
• No need for filtration socks
• Preassembled body
• Quick-release muffler plates
• Upper rollers with guide for the fleece
• Built-in polar filter
• Easy-to-clean design
• Multiple installation options
• Automatic feed of dirty fleece
• Multi-function smart controller
• End of roll audible alarm
• Filter clog/float error/water depth alarm
• Phosphate-free fleece
• Special low odor fleece
• Built-in fail-safe overflow
• Muffler plates for quiet operation
• Water diversion system
• Fleece removal tool

Clear and shiny water

With ClariSea, there is no longer any need for high-maintenance filter socks.

light penetration

Using a ClariSea fleece filter will ensure the highest possible filtration efficiency for optimal light penetration to promote the growth of your corals and plants.

Reduced accumulation of organic waste

Removes detritus and organic waste from the water column, preventing it from breaking down into nitrates and phosphates in your aquarium.

Reduced load on protein skimmer

The ClariSea fleece filter greatly reduces the load on your protein skimmer by removing even the smallest particles.

Reduced maintenance

Permanent filtration means less maintenance on pumps, inverters and protein skimmers, so no more socks to clean.

More trash

A ClariSea fiber filter will reduce the buildup of detritus in your aquarium's substrate and basin.

Additional Gen 3 Features:

• Pre-assembled body
• Quick-release muffler plates
• Top rollers with lint guide
• Built-in soft toy holder
• Improved cruciform motor
• fleece removal tool

Technical characteristics :

• Recommended flow: 5000 l/h
• Optimal water depth for longer fleece life: 10cm
• Minimum submerged water depth: 5 cm
• Maximum submerged water depth: 20cm
• Hanging bracket height adjustment: up to 14 cm
• Recommended aquarium size: 1200 liters
• Universal inlet connection: 32mm / 40mm / (socket required for 40mm connection)
• Filter fleece: 15 cm wide

ClariSea Smart Controller:

The ClariSea filter features an intelligent controller for automatic and manual fleece roll advance. It also displays visual and audible alarms if a potential error is detected during operation.

Smart Controller Buttons

Play button:

• Press and hold this button to manually advance the motor and wind the fleece.

Alarm button:

• Press the alarm button for 1-2 seconds to turn off the audible alarm. The alarm condition will still be present with the red LED still flashing. Automatic fleece advance will be disabled, but the play button will still function as manual fleece advance.
• Pressing the alarm button for 5-7 seconds will fully reset the controller, which will completely clear the alarm state and return the unit to normal operating mode. Disconnecting power for 30 seconds also resets the controller and clears the alarm state.

Smart Controller LED Indicator Functions

Normal running :

Initialization (power on or reset):

• Blue/Red LEDs flash 5 times, an audible alarm will sound with each flash if the smart controller is reset or powered on.
• The blue LED stays on to indicate that the unit is in normal standby mode.

Engine activation:

• When the motor is activated, the blue LED flashes.

Alarm indicators

If the roller cannot move forward or if the float is activated for more than 5 seconds:

• The red alarm light flashes
• Audible alarm will sound for 2 seconds every 5 seconds
• Automatic fleece advance will be disabled until the controller is reset.

If the float is not activated for 8 hours, it means that the fleece is probably empty:

• Blue/red LEDs flash, audible alarm sounds for 1 second every 2 seconds.
• Automatic fleece advance will be disabled until the controller is reset.

If there is a possible installation error and the float is not triggered within 48 hours of initial setup or reset:

• The red LED flashes at 10 second intervals and the audible alarm sounds with each flash.
• The automatic fleece advance will be disabled until the controller is reset.
