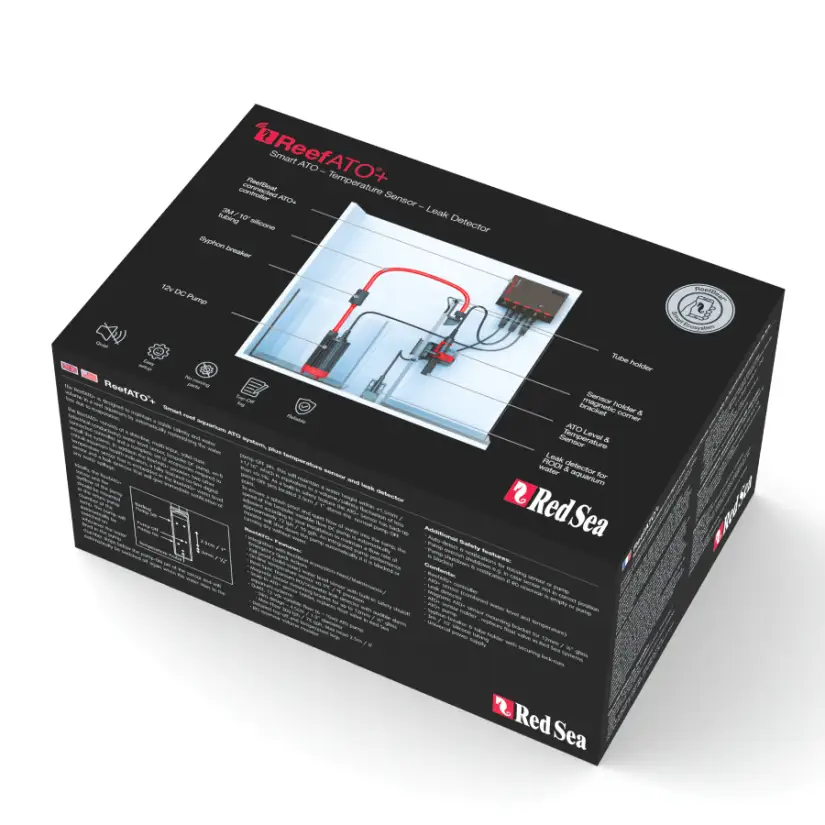

RED SEA - ReefATO+ 3 in 1 - Connected osmolator

Presentation video of the RED SEA - ReefATO+ 3 in 1

The sensor of the ReefATO osmolator

Titanium level sensors and a temperature probe in a single block.

Heavy-duty water level sensor (one-piece EC technology), with built-in back-up sensors to stop the pump, located 2.5 cm above the normal stop level of the pump. The Reef-Spec titanium probe set gives a real-time indication of the water level on the sensor, which can be viewed at any time on the ReefBeat app. The temperature probe integrated into the ATO+ sensor has been pre -calibrated to achieve an accuracy of ±0.1°C.

The pump of the ReefATO osmolator

Silent pump with variable flow, diameter of 4.5cm, maximum height 2.5 meters.

Silent osmolator pump, variable flow, 12 vdc. Cylindrical design with a diameter of 4.5 cm to fit in standard jerry cans. Maximum flow 300 L/h, maximum head 2.5m, power 6-10W. The performance controller automatically stops the pump and notifies you via the ReefBeat app if it is not connected, if it jams or if the RO water supply has run dry. The pump flow is automatically adjusted according to your installation to maintain a flow rate of approximately 72 L/h ensuring a quiet and splash-free water flow in the settling.

ReefATO Leak Detector

High precision titanium leak sensor. You are notified on your smartphone in the event of a leak.

If a leak is detected, the automatic filling of the osmolator is immediately deactivated, and after a few seconds to confirm that the leak persists, the controller emits an audible alarm (configurable) and sends a notification to your mobile.

Pair the leak detector with ReefBeat's Quick Action Emergency Stop mode and the ReefBeat ecosystem will automatically shut down other connected equipment such as ReefRun return pumps.

ReefATO Controller

The controller allows the connection of all sensors and the pump. It provides the wifi connection to the ReefBeat.

Complete Installation Kit

• Sensor holder and magnetic corner support for glass up to 12mm

• Silicone tube 3m long and 1.5mm thick, Ø int 5mm

• Quiet flow – Hose holder, attaches to 4-12mm glass

• Anti-reverse
