The SMART ATO Duo is very easy to install on an aquarium or on a technical tank because everything necessary and contained in the box. The SMART ATO Duo uses the QST for real-time protection against any fault condition. The QST can detect malfunction of sensor, controller and empty tank to prevent the pump from running dry. The SMART ATO Duo emits an audible and visual alert at any time when it notices that a filling time is 6 times longer than the 1st filling. For example, if the 1st fill time was 10 sec. then the controller will issue an alert when a fill is longer than 60 seconds.
Installation diagram:
Features :
- The smallest ATO system currently available.
- Suitable for nano aquariums and medium sized aquariums.
- Extremely easy to install thanks to the integrated magnetic support.
- Dual optical level sensor in one package provides double protection.
- The touch controller indicates the working status.
- QST (Quick Security Technology) provides real-time protection against failures.
- LED sound and light alarm.
Technical characteristics :
- Input power: 100-240VAC / 50-60HZ
DC pump:
- Ascent: 250 cm
- Flow rate: 280 L/h
For fixing to a glass or acrylic wall
- Max thickness of the wall for the magnet: 12.7 mm
- Max distance to detector: 25.4 mm
- Power: 4.5W @ 12V DC
- Pump power cable length: 180 cm

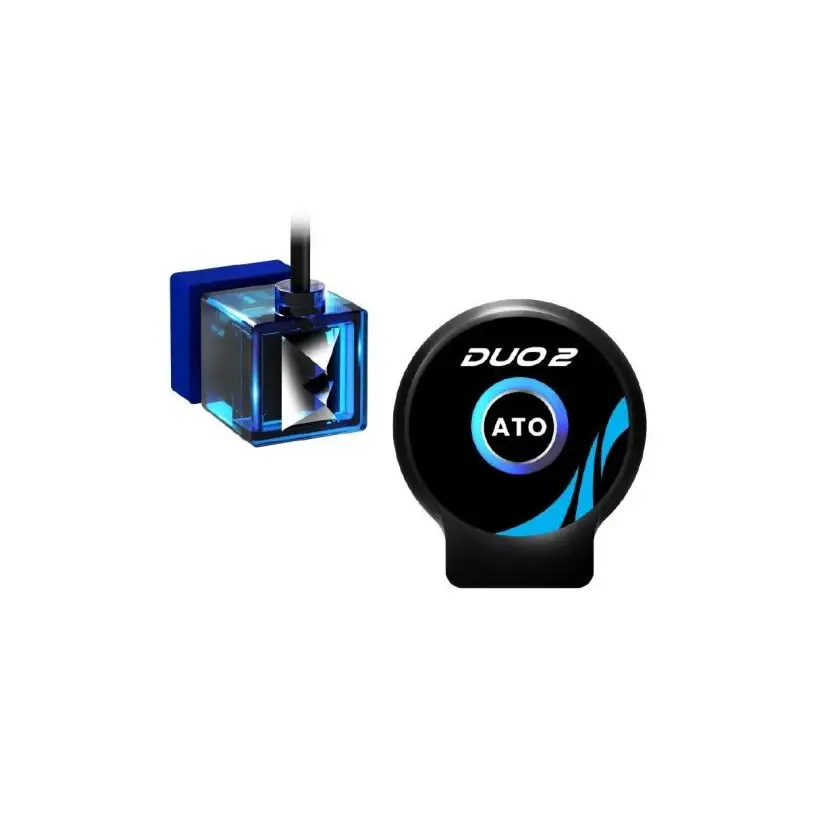

Auto Aqua - Smart ATO Duo - Osmolation system with digital sensors
Auto Aqua 's Smart ATO Duo is a unique automatic osmolation system with two non-contact digital sensors that monitor and automate the refilling of evaporated water.
